Hardware » Комплектующие для серверов » ASUS. Серверные платформы, мат. платы » ASUS. Материнские платы для рабочих станций

Артикул: 44888

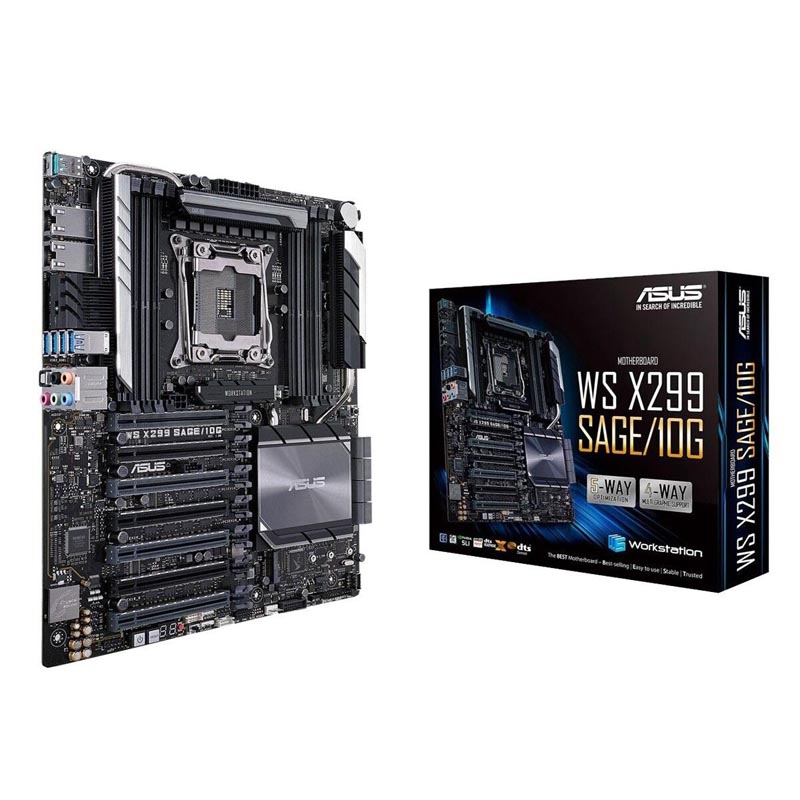

[] M/B ASUS WS X299 SAGE/10G S2066, 8xDDR4, PCI-E 7x16, 6xSATA3 RAID, 2x10GbE, 2xM.2, CEB (305x267mm)

Цена:39 348 p
$ 677
Наличие:склад

ASUS Prime  H370 Plus




Основные характеристики

CPU Intel® Socket 2066 Core™ X-Series Processors
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Max Technology 3.0
* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.


Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
RAM Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Chipset Intel® X299
Слоты расширения 7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
LAN Intel® X550-AT2 , 2 x 10 Gigabit LAN Controller(s)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
Video Intel® HD Graphics onboard
1x DVI-D
1x D-Sub
1x HDMI
Порты Intel® X299 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)

Back I/O Ports
2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 (black)Type-C
1 x Optical S/PDIF out
1 x 8-channel Audio I/O
4 x USB 3.1 Gen 1 (blue)
Форм-фактор CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
Storage 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)
1 x U.2 connector, *3
Support Raid 0, 1, 5, 10
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Intel® Optane™ Memory Ready
Intel® Virtual RAID (VROC) support for CPU RAID
Operating System Support Windows® 10 64-bit
