| Артикул: 46470 |

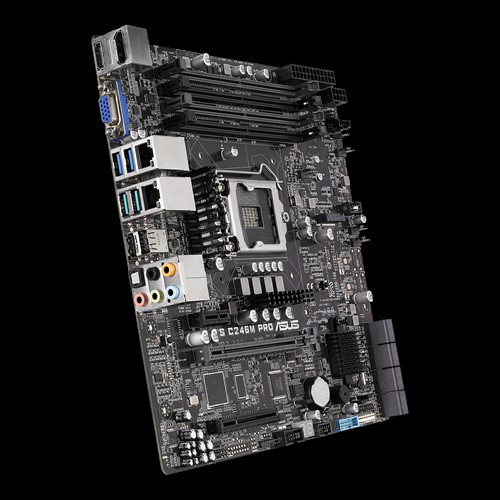

[90SW00E0-M0EAY0] M/B ASUS WS C246M PRO S1151, 4xDDR4,PCI-e x16, 1x8 ,1x1,8xSATA3 RAID, 2xGbE, M.2, D-Sub+DP+HDMI,mATX |
| Цена: | 35 093 | p |
| $ 376 | |
| Наличие: | поставка | |
|
|
|
|
Основные характеристики
|
|---|
| Processor / System Bus |
Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB UDIMM
|
| Expansion Slots |
Total Slot : 3
Slot Location 1 : PCI-E x1 (Gen3 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
|
| Form Factor |
U ATX (9.6"x9.6", 244mm x 244mm)
|
| Storage |
SATA Controller :
Intel® C246 Chipset
8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
|
| Networking |
1 x Intel® I210AT
1 x i219-LM
|
| On Board I/O |
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x TPM header
1 x S/PDIF Out (Optical)
|
| Back I/O Ports |
2 x USB 3.1 ports (Type A)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
|
| Management Solution |
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
|
| Accessories |
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
1 x M.2 screw
Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
10 x M.2 screw
|
