| Производитель |
Supermicro
|
| Тип продукции |
Серверная платформа
|
| Модель |
SYS-6029P-TRT
|
| Motherboard |
Super X11DPi-NT
|
| CPU |
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Up to 28 Cores
‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
|
| System Memory |
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
|
| Chipset |
Intel® C622 chipset
|
| Network Controllers |
Intel® X722 10GBase-T Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| IPMI |
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Graphics |
ASPEED AST2500 BMC
|
| Input / Output |
8 SATA3 (6Gbps) ports
2 RJ45 10GBase-T Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
Rear USB: 2 USB 3.0 + 2 USB 2.0
Front USB: 2 USB 2.0
USB Header: 1 Type A
1 VGA port
2 Fast UART 16550 serial
2 COM Ports (1 rear, 1 header)
2 SuperDOM (Disk on Module) ports
|
| BIOS Type |
AMI UEFI
|
| Software |
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
|
| Chassis |
Form Factor - 2U Rackmount
Model - CSE-825TQC-R1K03LPB
|
| Front Panel |
Power On/Off button
System Reset button
UID button
|
| LEDs |
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
|
| PCI-Express |
4 PCI-E 3.0 x16 (Low-profile)
2 PCI-E 3.0 x8 (Low-profile)
|
| Hot-swap |

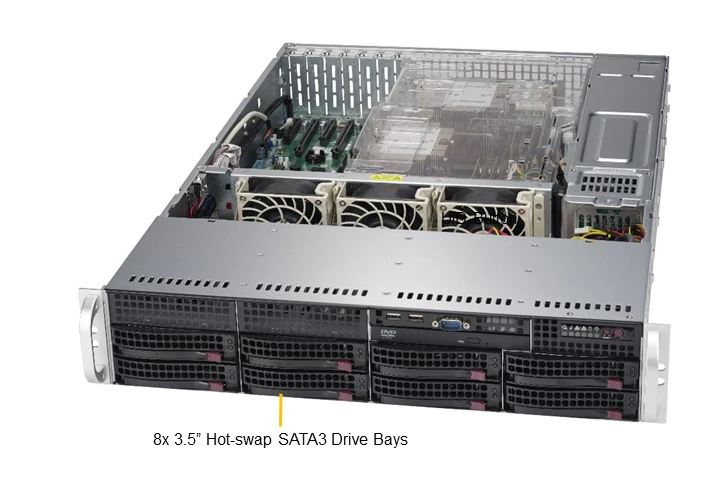

8 Hot-swap 3.5" SATA drive bays
|
| Backplane |
BPN-SAS3-825TQ
8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
|
| System Cooling |
3 Heavy duty 80mm fans with PWM fan speed control
|
| Power Supply |
1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
|
| Габариты |
437mm Х 89mm Х 647mm
|
| Вес |
Net Weight: 35.5 lbs (16.1 kg)
Gross Weight: 69 lbs (31.2 kg)
|
