| Артикул: 46332 |

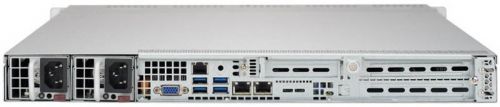

[SYS-1029P-WTRT] Платформа Supermicro 1U, 2xLGA3647, iC622, 10x2.5 ", 12xDDR4, 2x10GbE, VGA, IPMI, 5xPCI-E, 2x750W |
| Цена: | 257 870 | p |
| $ 2 579 | |
| Наличие: | поставка | |
|
|
|
|
Основные характеристики
|
|---|
| Материнская плата |
Super X11DDW-NT
|
| CPU |
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W
Up to 28 Cores
BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
Extended thermal solutions may be required to support CPUs higher than 165W TDP
|
| RAM |
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
|
| On-Board Devices |
Intel® C622 chipset
SATA3 (6Gbps); RAID 0, 1, 5, 10
Dual 10Gbase-T LAN with Intel C622
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
|
| Input / Output |
8 SATA3 (6 Gbps) ports
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
6 USB 3.0 ports (4 rear, 2 front via header)
1 VGA port
2 SuperDOM (Disk on Module) ports
|
| Chassis |
CSE-116AC2-R706WB2 1U Rackmount
|
| Управление |
Power On/Off button
UID button
|
| Индикация |
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
|
| Backplane |
SAS/SATA HDD Backplane
|
| Охлаждение |
4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling
|
| PCI-Express |
2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E 3.0 x4 NVMe M.2 slot
|
| Отсеки |
8 SATA3 (6Gbps) Hot-swap ports and 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)
|
| БП |
700W/750W Redundant Power Supplies with PMBus
|
| Размеры |
437x43x597mm
|
| Вес, кг |
21 kg
|
