| Производитель |
Asus
|
| Тип продукции |
Материнская плата для ПК
|
| Модель |

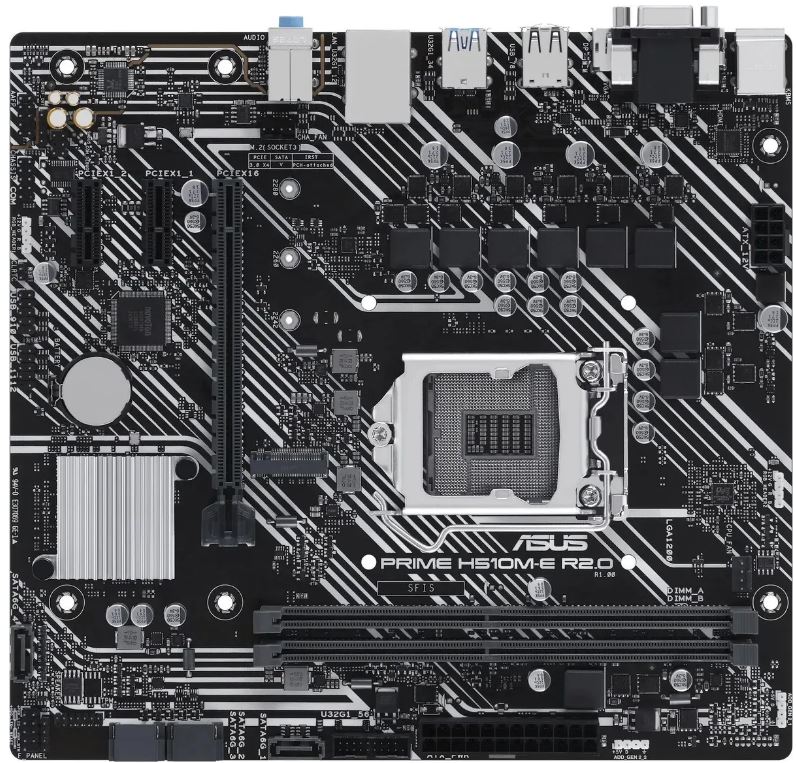

PRIME H510M-E R2.0
|
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
|
| Chipset |
Intel® H510 Chipset
|
| Memory |
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
|
| Graphics |
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 2.0
|
| Expansion Slots |
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
2 x PCIe 3.0 x1 slots
|
| Ethernet |
1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard
|
| USB |
Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
|
| Audio |
ALC887/897
|
| Storage |
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
|

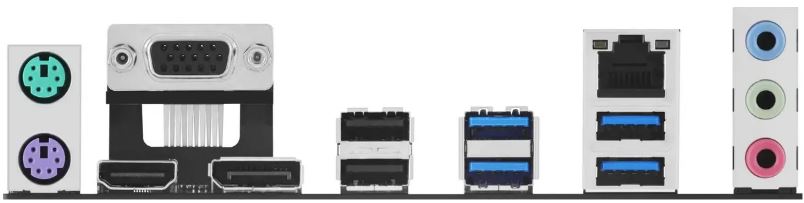

| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
|
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
| Operating System |
Windows 10 64bit
|
| Form Factor |
mATX Form Factor
22.6cm x 21.1cm
|
